Steel Tank Reservoirs
Our steel reservoir volumes range from 38 000 to 3 000 000 litres dependent on site specific uses
Tank Catalogue
Commercial Tanks
- Steel roof
- Available up to 3 000 000L
- Larger volumes available upon request
Domestic Tanks
- Steel roof
- Available from 35 000L

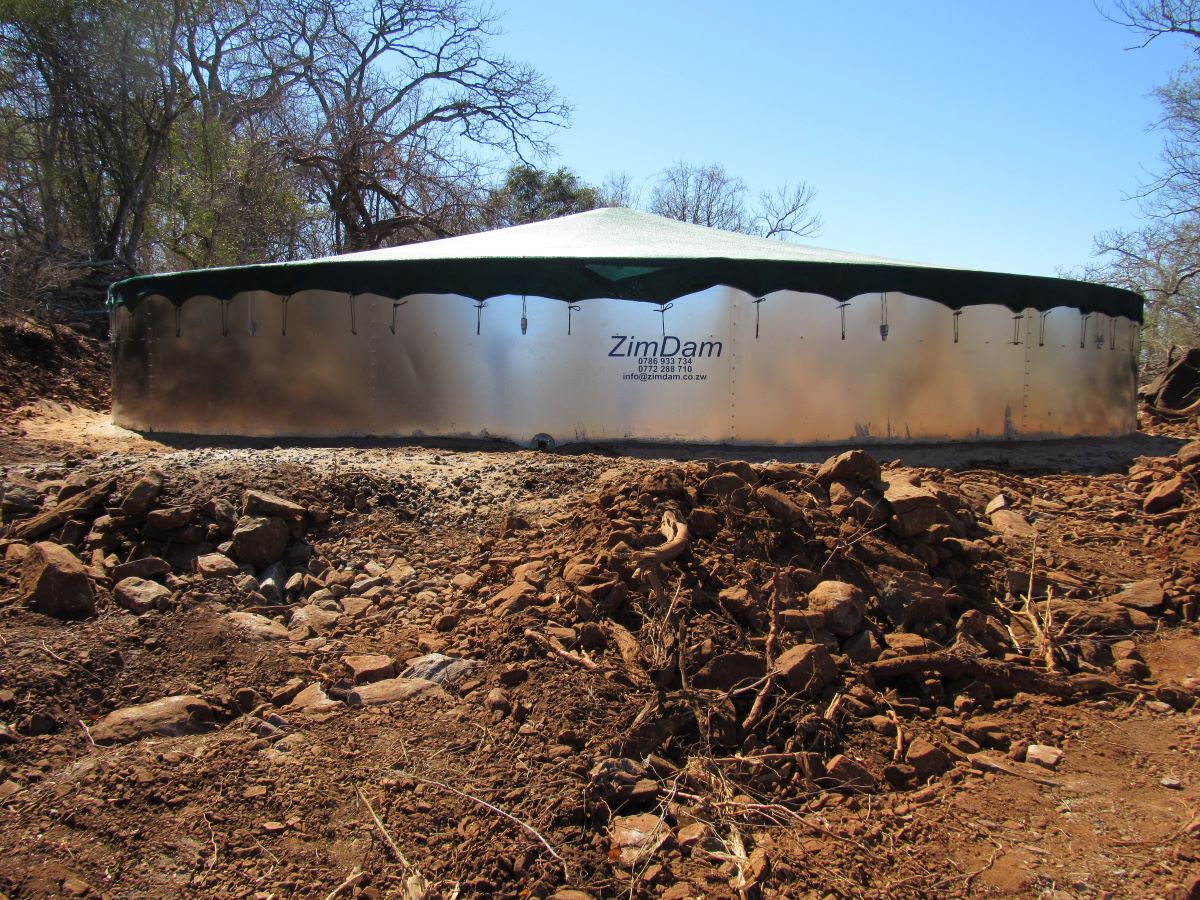

Agricultural Tanks
- Shadecloth roof
- Available from 48 000L
Rainwater Systems
- Shadecloth or steel roof
- Volume is dependent on size of the catchment area
Fire Tanks
- Steel roof
- Available from 35 000L
Warranty Information
- The steel structure carries a 10-year warranty against faulty material and/or workmanship
- The liner carries a 10-year pro-rata warranty against sun damage
- Our products are ISO 230 steel sheets hot-dipped galvanized to Z275 spec
- Typical yield strength is 260MPa
- We never exceed 90% of the safe load limit on fasteners
- Liner is manufactured from 550 and 700 grade PVC coated polyester base fabric
- The steel roof structures have a safe load rating of 350 N/m2 and a safe wind speed rating of 144km/hr
- Test results for all materials are available upon request
